Wavlink USB-C Triple Display (2 DP + 1 HDMI) Docking Station with 65W Power Delivery
USB-C Triple Display MST Docking Station delivers device charging to your Laptop Computer, supports up to three displays, and enables connectivity to your wired network and other accessories.

Features:
* Compatible with Type-C USB3.1 Gen2 full specification PC Computer.
* USB Power Delivery with 4 profile support 65 Watts or 35 Watts upstream charging.
* DisplayPort support V1.4; HDMI port support HDMI V2.0
* Support triple display, max. resolution up to 1920x1080@60 (HBR3 DP1.3)
* Support dual display, max. resolution up to 2560x1440@60 (HBR3 DP1.3)
* Support single display, max. resolution up to 3840x2160@60 (HBR3 DP1.3)
* Build in Gigabit Ethernet network RJ-45 backward 10/100 Ethernet.
* Build in 4-Pole phone Jack for stereo audio out and microphone in.
* Build in Combo SD / TF Card Reader SD V3.01 support SDHC / SDXC capacity up to 2TB.
* Four USB 3.0 Type-A ports with one port has BC1.2 fast charging.
* Support OS Windows 7 / 8 / 10; Max OSX 10 or the latest version

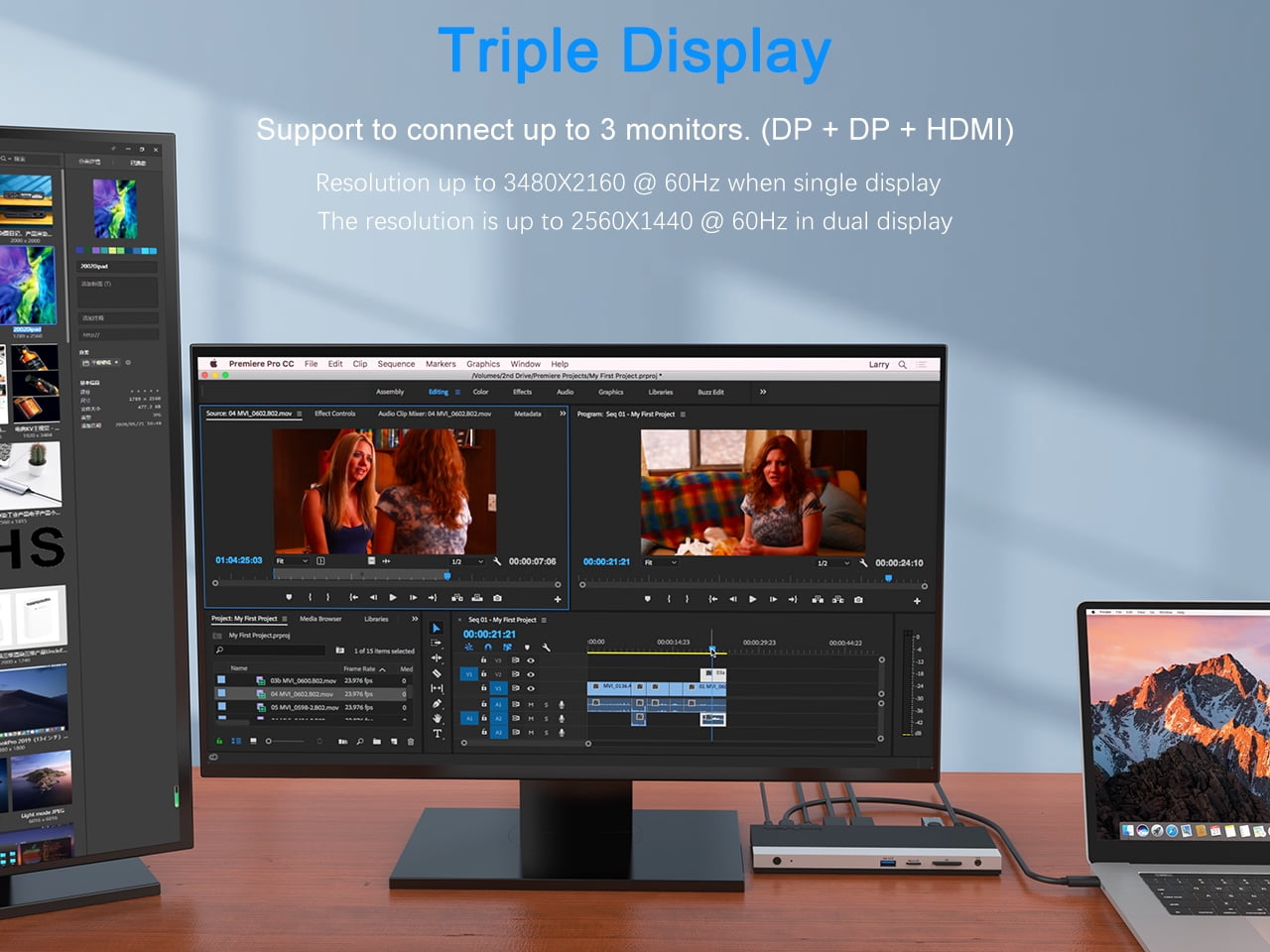

Triple Display with Dual 4K Displays and 1 HDMI
DP and HDMI ports via USB C Vesa Alt.
Resolution up to 3840x2160@60Hz when you use single disply. Resolution supports up to 2560x1440@60Hz with dual displays attached. When you use triple display the resolution is up to 1920x1080@60Hz.

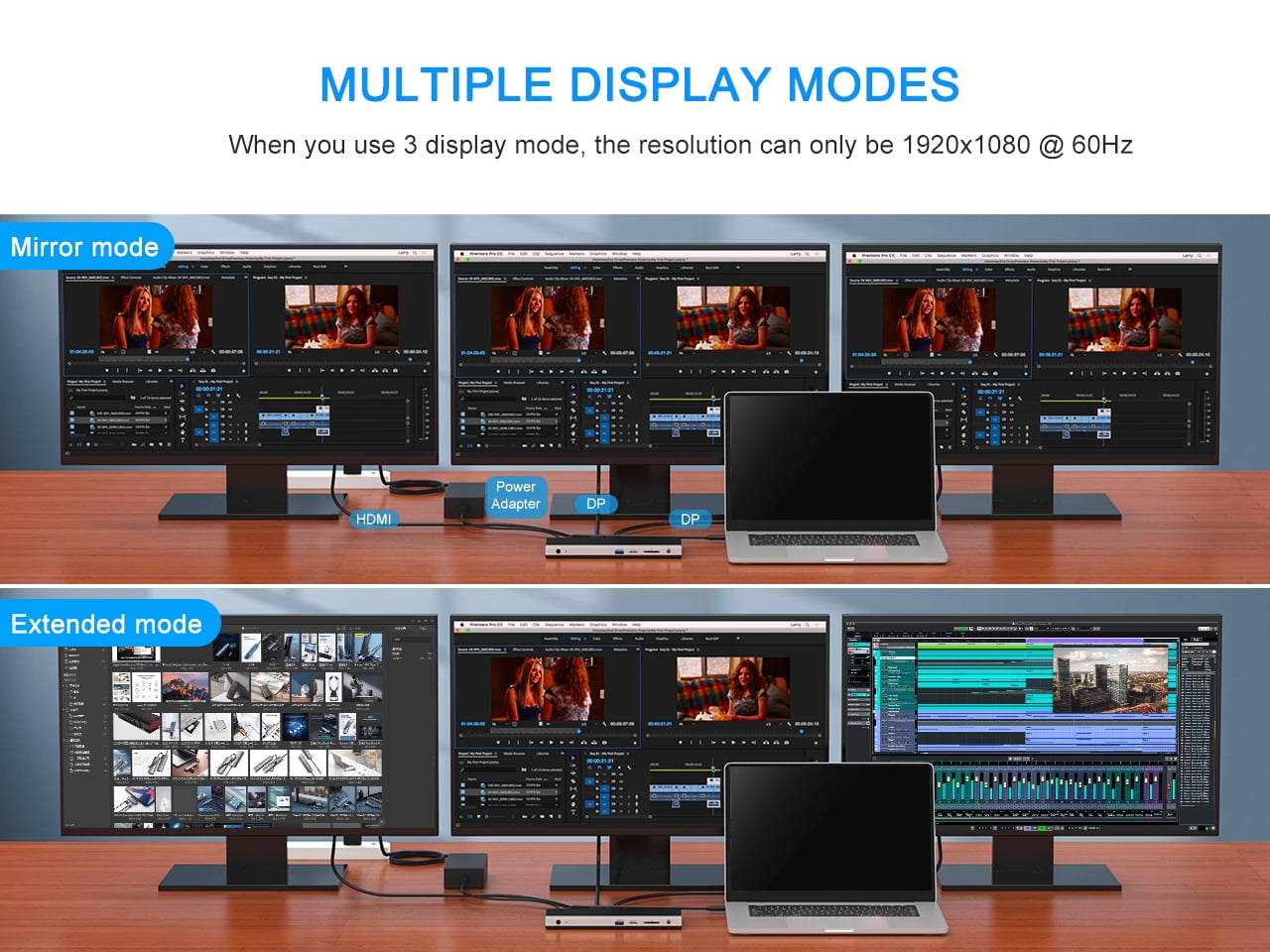

There are two modes: Extend mode and Mirror mode. Extend mode extends the main screen of your PC to the additional monitor.Mirror mode duplicates the main screen of your PC to the additional monitor or projector.
Note:For Apple computer users (MAC OS), displays are Mirror mode only.

65W Power Delivery
Dock provides USB-C power delivery up to 65W maximum of upstream charging and 35W maximum of downstream charging.
One of USB 3.0 Type-A ports also supports BC 1.2 fast charging to USB-A devices.

USB Power Delivery
USB power delivery (PD) supports max. 65Watt upstream Laptop Charging and with one USB3.0 port has BC1.2 charging. For all downstream devices along with power to other peripherals (smart phones, Pads, etc.).

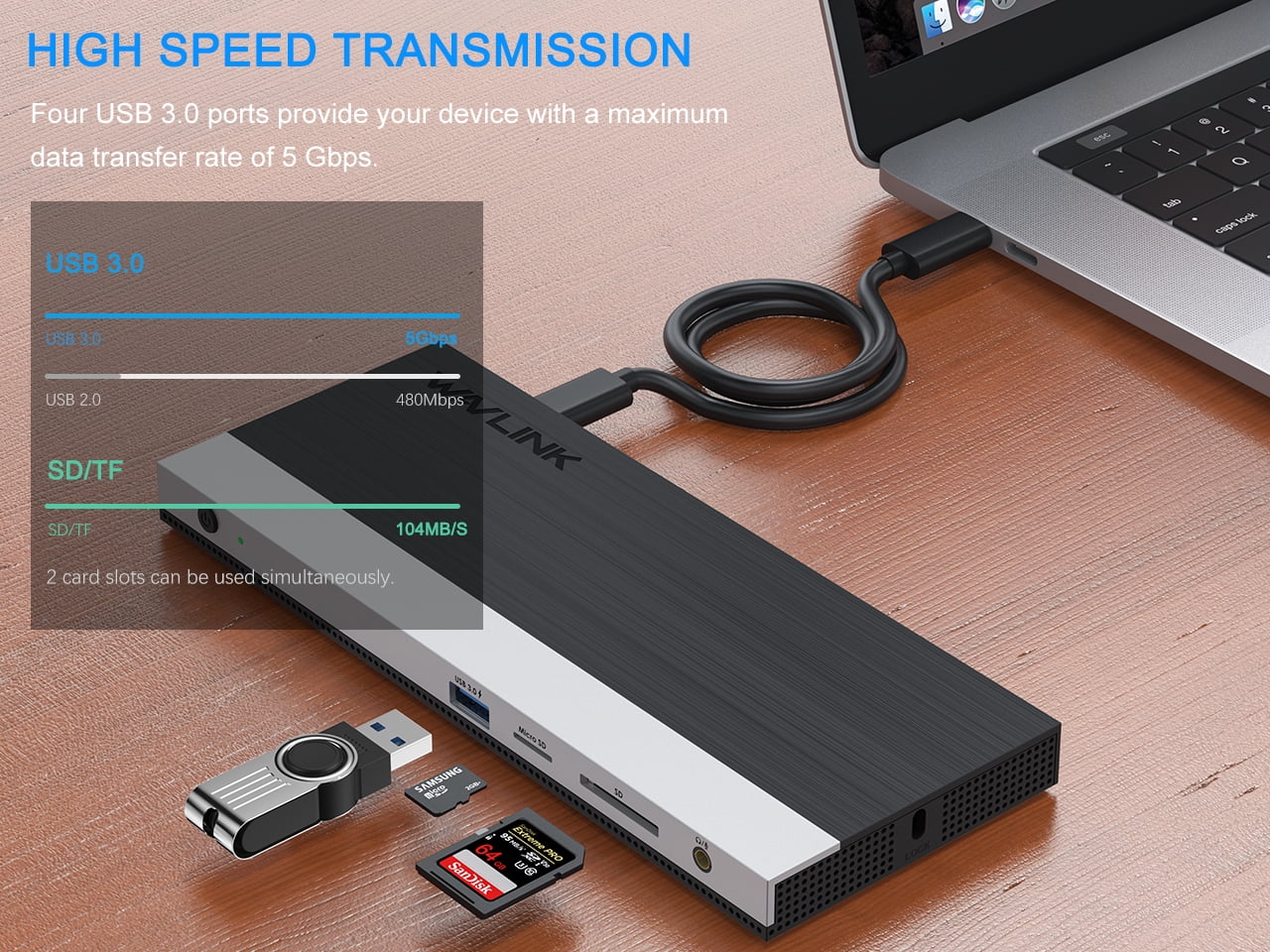

USB 3.0 Ports
Compared with the USB 2.0 transmission speed, USB 3.0 port is 10 times faster, whose data transfer speed is up to 5 Gbps. This port is also compatible with USB 2.0.
SD and TF / Micro SD Card Reader fills up latest Laptop missing function for fast data transfer speed, allowing you transfer images, files and videos to your computer.
Note:SD and the TF card cannot use at the same time.

Gigabit Ethernet
Connect to your laptop, PC, game consoles and so on with RJ45 Gigabit Ethernet, your multitasking online will be amazingly sped up compared to regular Ethernet port. Theoretically speaking, it supports up to 1 gigabit/second (1000Mbps), thus bandwidth capacity would be largely enhanced.

Two Capabilities in One
Your microphone and headphones can be connected and used on the same port.

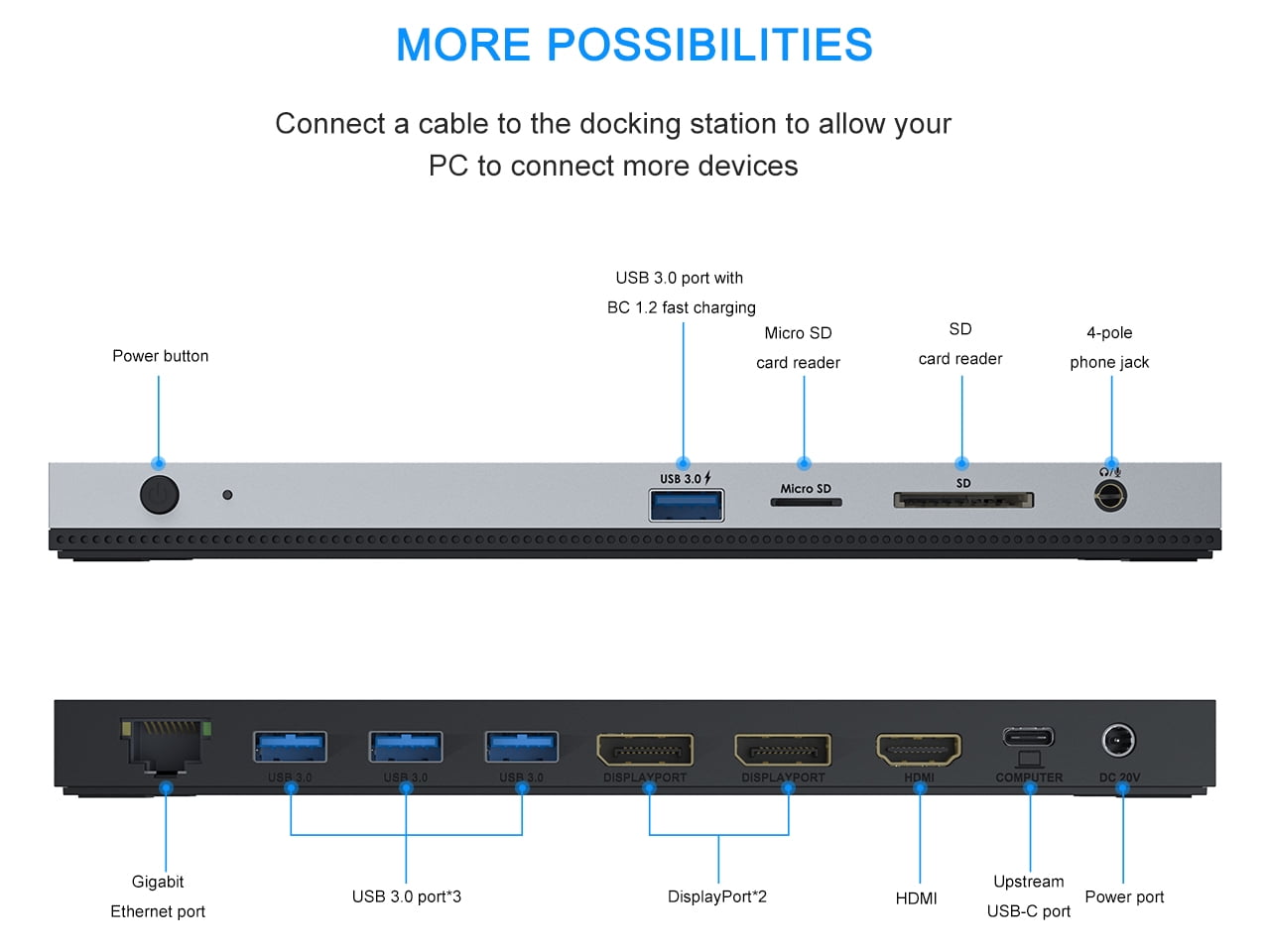

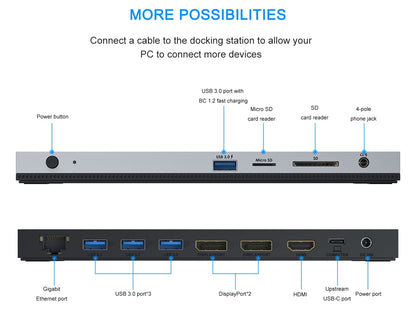

Working Standard
- USB-C I/P: USB3.1 Gen2 (data, Video and Upstream Charging)
- Single DisplayPort: 4K/60Hz max.
- Single HDMI: 4K/60Hz max.
- USB-C Port: 5Gbps
- 3 x USB-A Port: 5Gbps
- 1 x USBA Port: 5Gbps + BC1.2 Charging
- RJ45: Gigabit Ethernet
- CardReader: SDHC /SDXC /TF
- Phone Jack: Stereo 4pole TRRS Stereo

System Support
USB-C Computer had USB3.1 full function with data transfer and USB-C Power Delivery & Video Alternate Mode, Windows 7 /8 /10 or later, Mac OS X or later

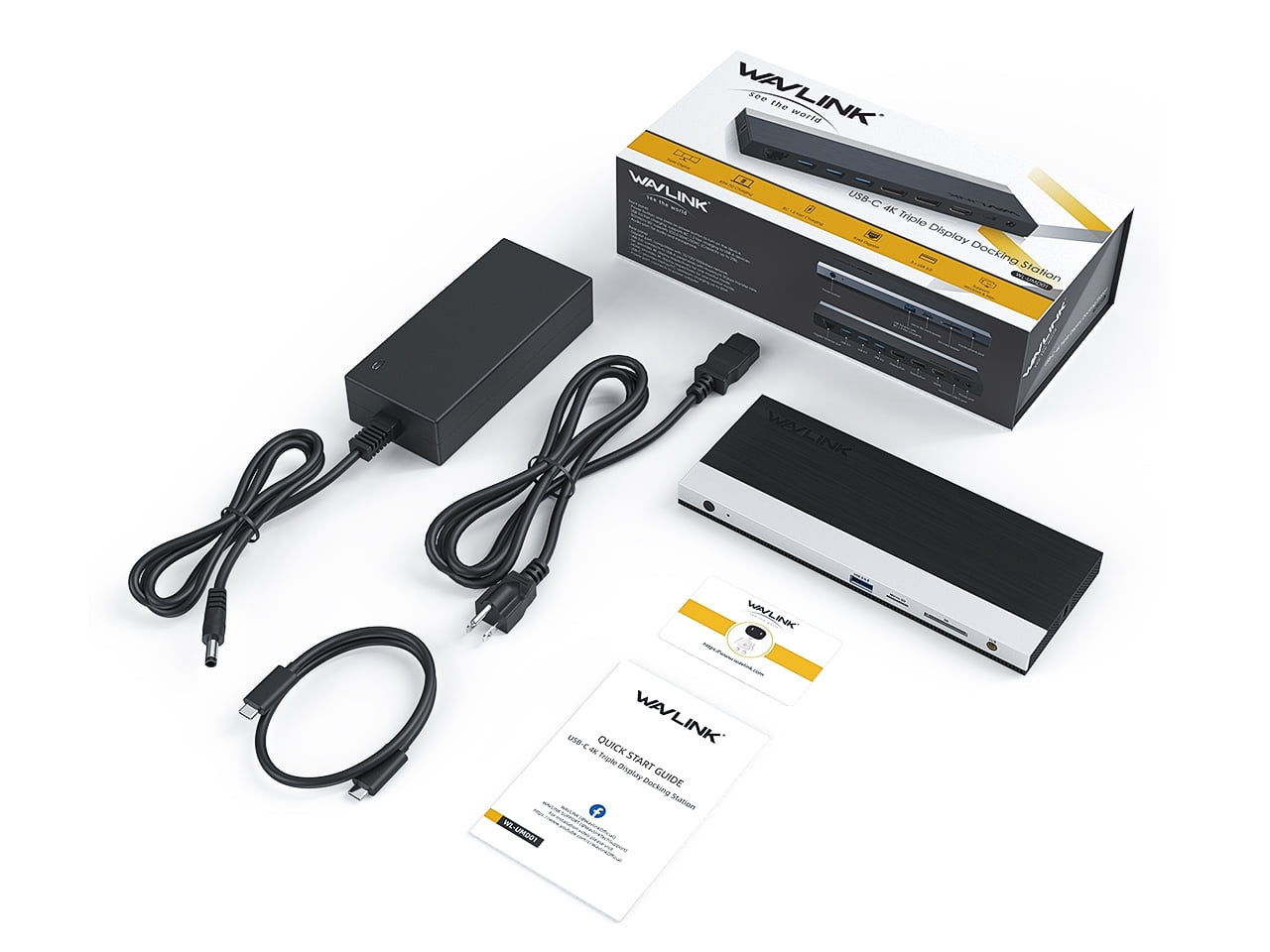

Package include:
1. USB-C Triple Display MST Docking Station
2. Power Adapter 100Watts, DC20V / 5A
3. Quick Installation Guide
4. USB-C to C Cable (eMark) 1meter

• Enjoy seamless multi-display setup with this WAVLINK USB-C Triple Display Laptop Docking Station, which supports up to three displays with resolutions up to 3840x2160@60Hz for single display, 2560x1440@60Hz for dual displays, and 1920x1080@60Hz for triple displays.
• Stay powered up with the USB-C power delivery feature, which provides up to 65W of upstream charging for your laptop and 35W of downstream charging for other devices.
• Connect to your wired network with the built-in Gigabit Ethernet port, offering faster internet speeds compared to regular Ethernet.
• Expand your connectivity options with four USB 3.0 Type-A ports, allowing high-speed data transfers up to 5Gbps, and a combo 4-pole audio jack for your headphones and microphone.
• Easily access your files and media with the built-in Combo SD/TF Card Reader, supporting SDHC/SDXC cards up to 2TB.
• Compatible with Type-C USB3.1 Gen2 full specification PC computers, including Windows 7/8/10 and macOS X or later versions.
