The WAVLINK 11-in-1 USB4 Laptop Docking Station
With its USB4 upstream port, you can enjoy lightning-fast data throughput speeds of up to 40Gbps and charge your device at an impressive rate of 96W. This powerful dock allows you to connect a single 4K@144Hz/8K@60Hz display or dual displays of 4K@144Hz/8K@60Hz+4K@60Hz(under DP1.4&DSC). It also enables high-speed file transfers through its 3x10Gbps USB3.1 and 2x5Gbps USB3.0 ports. Compatible with most laptops running Windows 10/11 and Mac 11 or later, ideal for TBT3/TBT4/USB4 laptops.

*Warm Tips:
-The type-C port of your host should support video output and charging to enjoy the full function of this dock.
-For more USB-C non-USB4/Thunderbolt 3/Thunderbolt4 laptops, the performance will be limited. Some laptops with Thunderbolt 3 port might support single monitor only(The other monitor goes black), including the M1/2/3-based Mac. While the m1/m2 pro/max based Mac and laptops with Thunderbolt 4 port could support dual 4K@60Hz monitors via our device.
-The USB-C 3.1 port is only for data transfer, it doesn’t support video output.
-The dock supports clamshell mode and rotation mode on both Windows and Mac OS.
-The dock supports HDCP.

Multiple Display Modes
Expand your work screen for multitasking or mirror display on a larger screen to appreciate.
*Note: M1/2/3-based Mac can only extend one monitor.

3xUSB3.1 & 2xUSB3.0 Ports
WAVLINK USB-C dock adds five high-speed data transfer ports to your laptop through a USB-C port, including 1*10Gbps USB3.1-C, 2*10Gbps USB3.1-A and 2*5Gbps USB3.0-A.

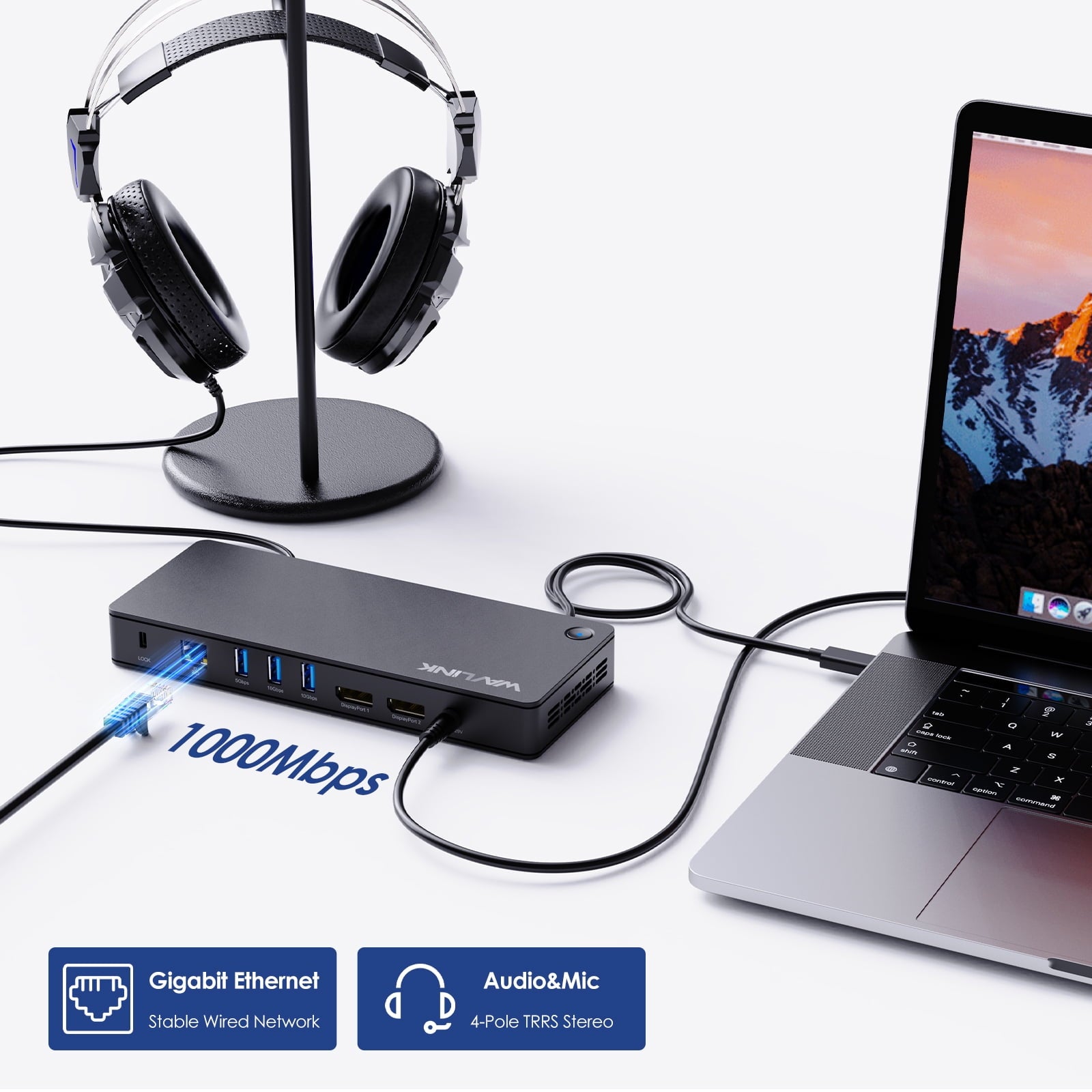

1000Mbps RJ45 Port
Supports up to 1000Mbps, the Ethernet port ensures a stable and smooth wired network connection, much more safe and reliable than a WiFi network. Also backward compatible with 100/10Mbps.

Comprehensive Protection
Ensure the security of your dock with the Kensington lock, physically preventing theft and safeguarding your data. Cooling holes on both sides efficiently dissipate heat, ensuring internal chip safety and prolonging the dock's lifespan.

Multiple Display Resolution(Max. Resolution)
*Single Display:

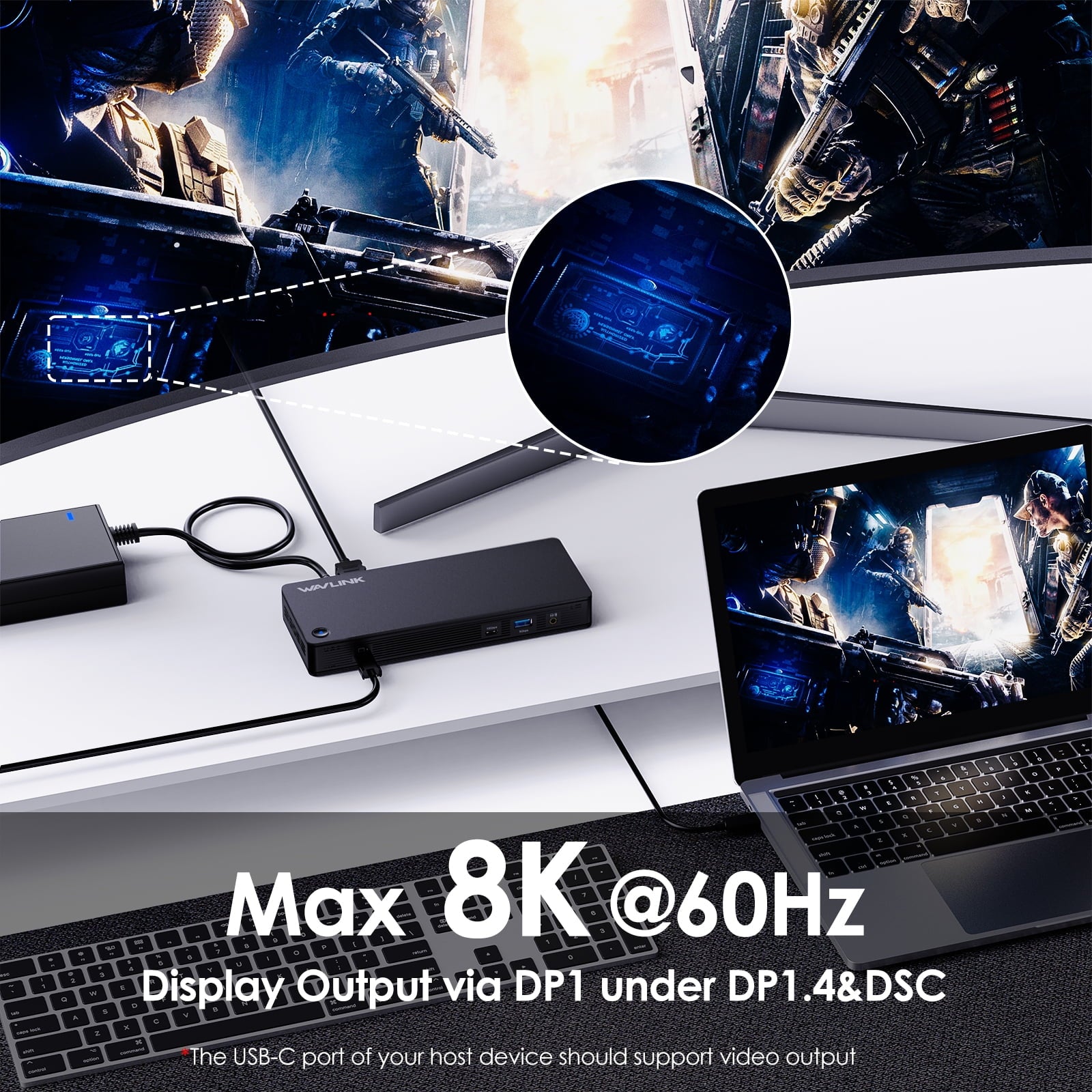

- DP1: 4K@144Hz/8K@60Hz(DP1.4&DSC); 8K@30Hz(DP1.4); 4K@60Hz(DP1.2)
- DP2: 4K@60Hz(DP1.4&DSC); 4K@60Hz(DP1.4); 4K@60Hz(DP1.2)
*Dual Display:
-DP1+DP2: 4K@144Hz/8K@60Hz+4K@60Hz(DP1.4&DSC); 8K@30Hz+4K@60Hz(DP1.4); 4K@60Hz+4K@60Hz(DP1.2)

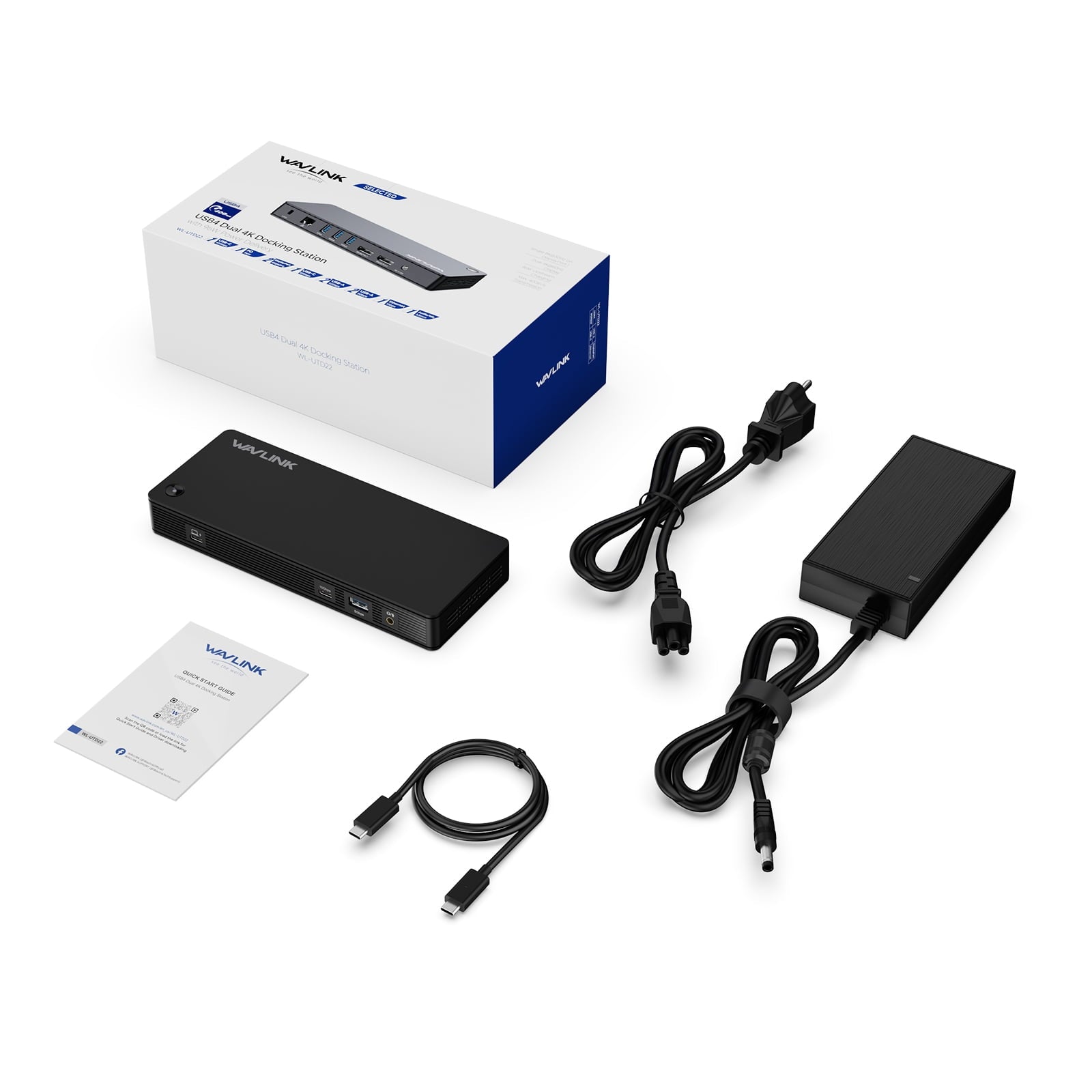

In the Box:
-1 x USB4 Dual 4K Docking Station
-1 x 0.7m USB-C 40Gbps Cable
-1 x DC 20V/6.5A 130W Power Adapter
-1 x Quick Start Guide

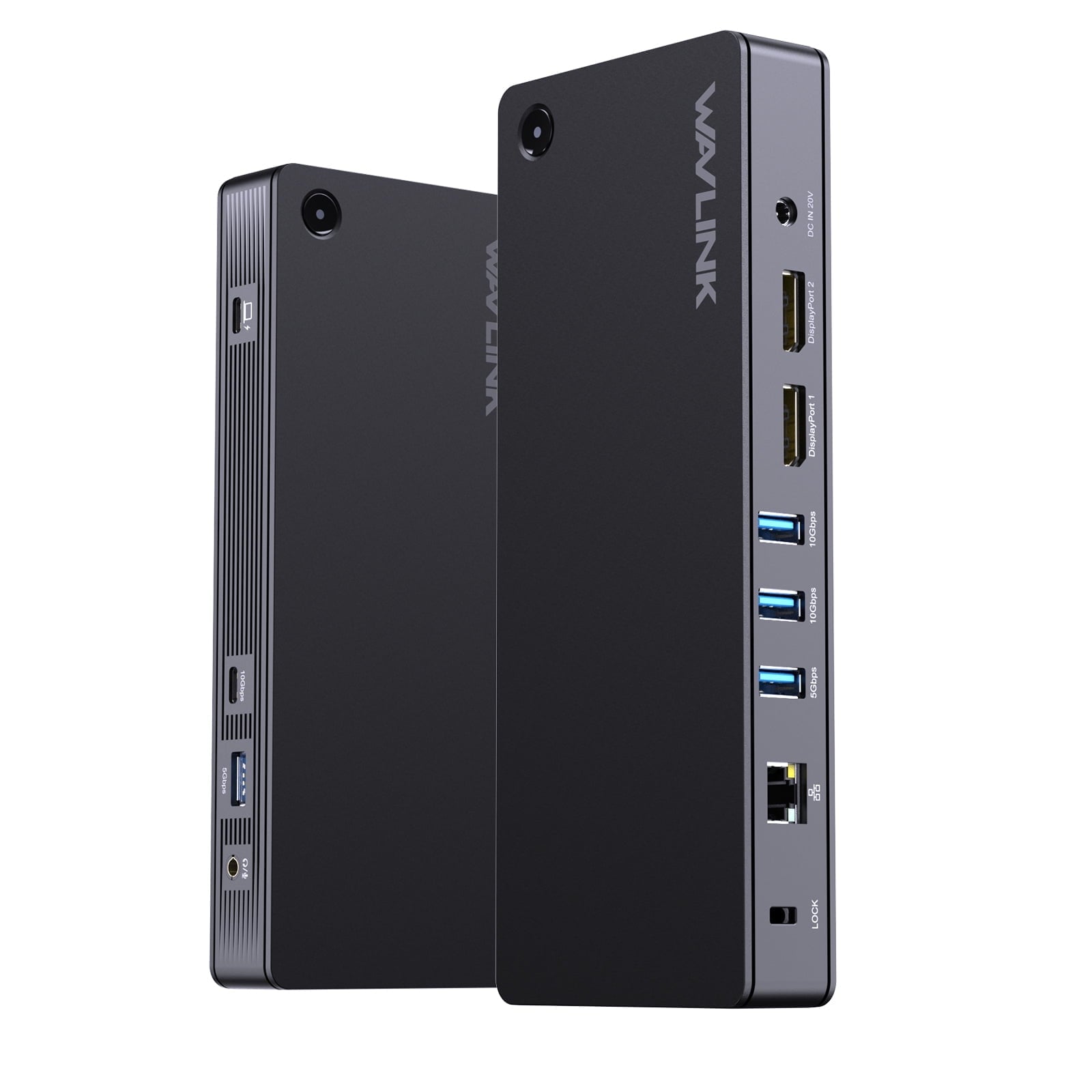

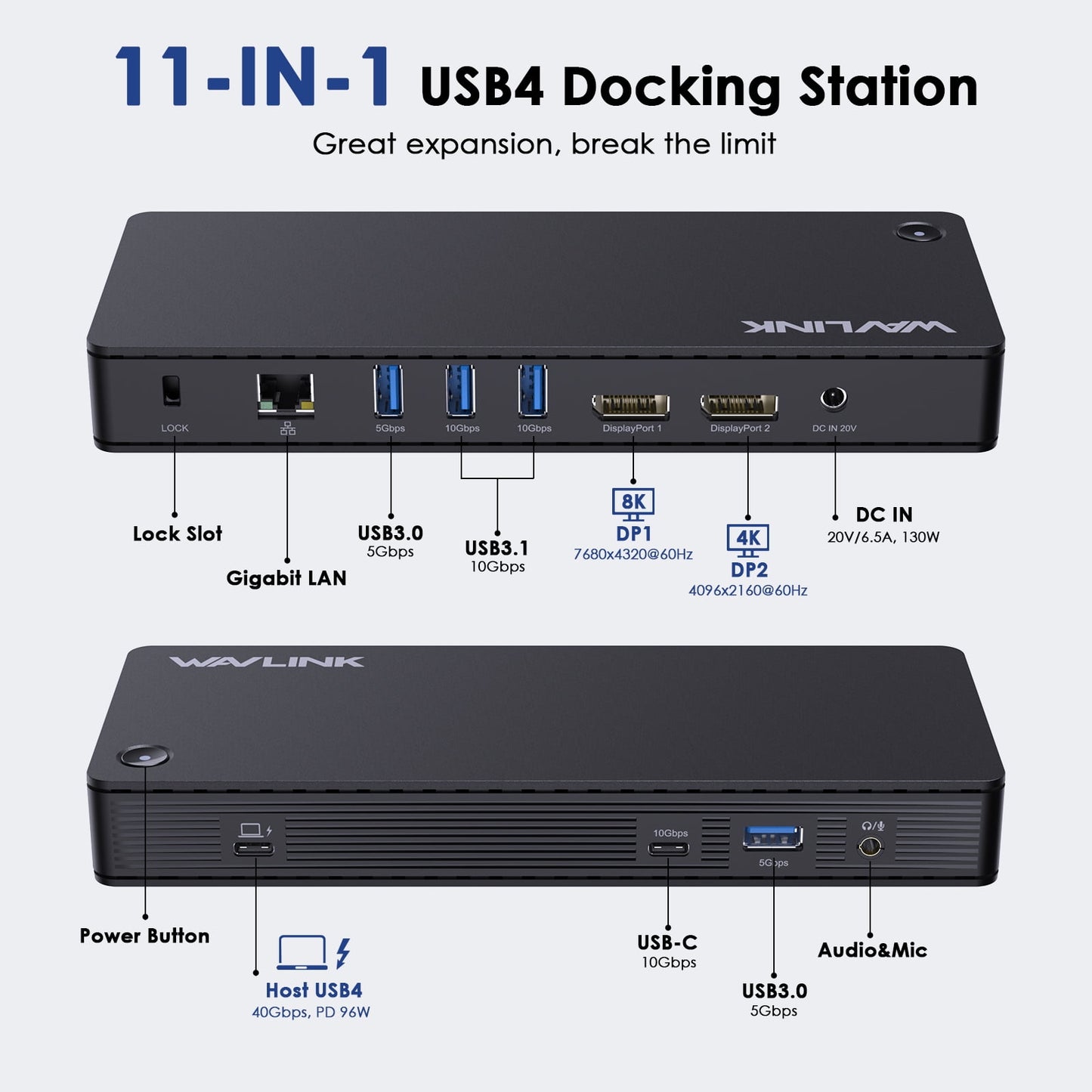

• This 11-in-1 USB4 docking station features a versatile selection of ports, including 1*8K DisplayPort, 1*4K DisplayPort, 1*130W PD IN, 1*10Gbps USB3.1-C, 2*10Gbps USB3.1-A, 2*5Gbps USB3.0-A, 1*Gigabit Ethernet port, 1*4-Pole phone jack, and 1*lock slot, allowing you to connect multiple devices and accessories.

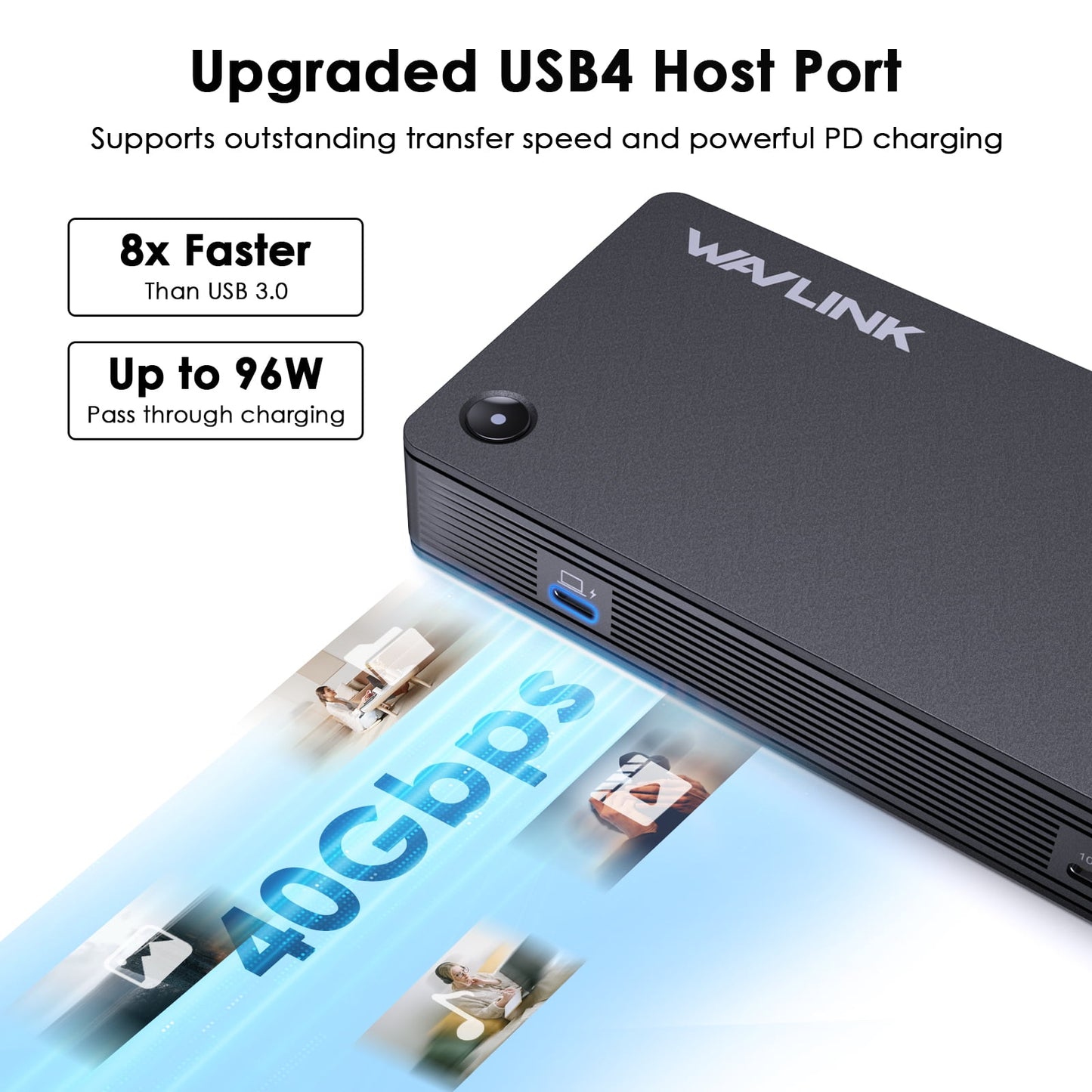

• The upstream USB4 port enables lightning-fast data throughput speeds of up to 40Gbps and supports 96W fast charging for your laptop, ensuring efficient productivity and power management.
• Enjoy stunning visual experiences with the ability to connect a single 8K@60Hz display or dual 4K@144Hz/8K@60Hz+4K@60Hz displays, thanks to the advanced display capabilities of this docking station.
• Experience blazing-fast data transfer speeds with the 1*10Gbps USB3.1-C, 2*10Gbps USB3.1-A, and 2*5Gbps USB3.0-A ports, as well as a 1000Mbps Ethernet port for a stable and reliable wired network connection.
• This docking station is compatible with a wide range of laptops, including those running Windows 10/11 and Mac 11 or later, with support for Thunderbolt 4, Thunderbolt 3, and USB4 devices, ensuring seamless integration with your existing setup.
• Comprehensive protection features, such as the Kensington lock and efficient heat dissipation, safeguard your dock and ensure its long-lasting performance.
