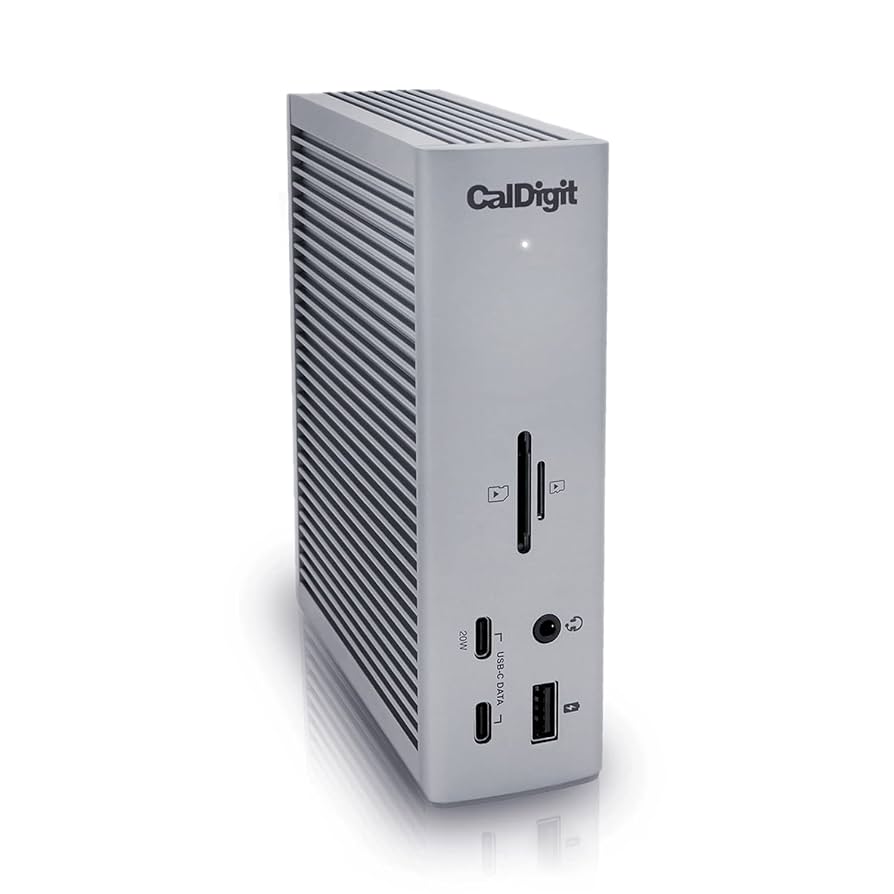

CalDigit - TS4 Thunderbolt 4 Dock - 18 Ports, 98W Charging, 40Gb/S Thunderbolt 4, USB-A/C, 2.5Gbe, 8K/6K Displays, Mac/Pc/Chrome Compatible - Serious Techies
Collapsible content
- 18 Ports of Extreme Connectivity - Featuring an impressive 18 ports, the TS4 has enough connectivity for even the most demanding of workflows. This includes a built-in DisplayPort 1.4 connector, a total of 8x USB ports with full 10Gb/s performance, SD & microSD 4.0 UHS-II Card Readers, 3x Thunderbolt 4 (40Gb/s) ports, 3x Audio ports, 2.5GbE, and a security slot.
- Powerful 98W Charging - The TS4’s power delivery is ideal for any Thunderbolt or USB-C (with data, video, and power support) host device, including larger screen laptops that require more power. A single cable will charge your laptop and connect 18 devices at the same time.
- Single 8K or Dual 6K 60Hz Displays - Windows users can connect a single monitor up to 8K resolution. macOS users can connect a single display up to 6K 60Hz. For anyone looking to add dual displays, Windows users can connect up to dual 4K 60Hz monitors. Users on M1 - M4 Pro, M Ultra and Max can connect up to dual 6K 60Hz display. Users with M1 - M3 (Non Pro) Macs are limited to a single display only due to host hardware limitations.
- 2.5 Gigabit Ethernet - The TS4’s 2.5GbE port is 2.5X faster than standard 1GbE, allowing users to connect to faster networks, routers, and NAS devices. This powerful Ethernet port is fully backwards compatible with 1GbE devices. 2.5GbE performance requires a Thunderbolt host connection and 2.5GbE compatible devices or above.
- Universally Compatible - The TS4 works with Thunderbolt 4, Thunderbolt 3, USB4, and USB-C* computers, including Apple M1 - M4, M1 Pro - M4 Pro, M Max and M Ultra, Windows PCs, and Chrome OS devices. Also compatible with the USB-C iPhone 15 - 16 Pro, iPads and Windows tablets that feature Thunderbolt or USB-C. **USB-C port must support data, video, and power for functionality
- **The TS4 requires a Thunderbolt 4 or fully optioned USB4 port for maximum performance. When used with older or less powerful interfaces such as Thunderbolt 3, Thunderbolt 2, Thunderbolt 1, USB-C (with data, power, and video support), performance will be capped at the capability of the the host interface specifications
Product description

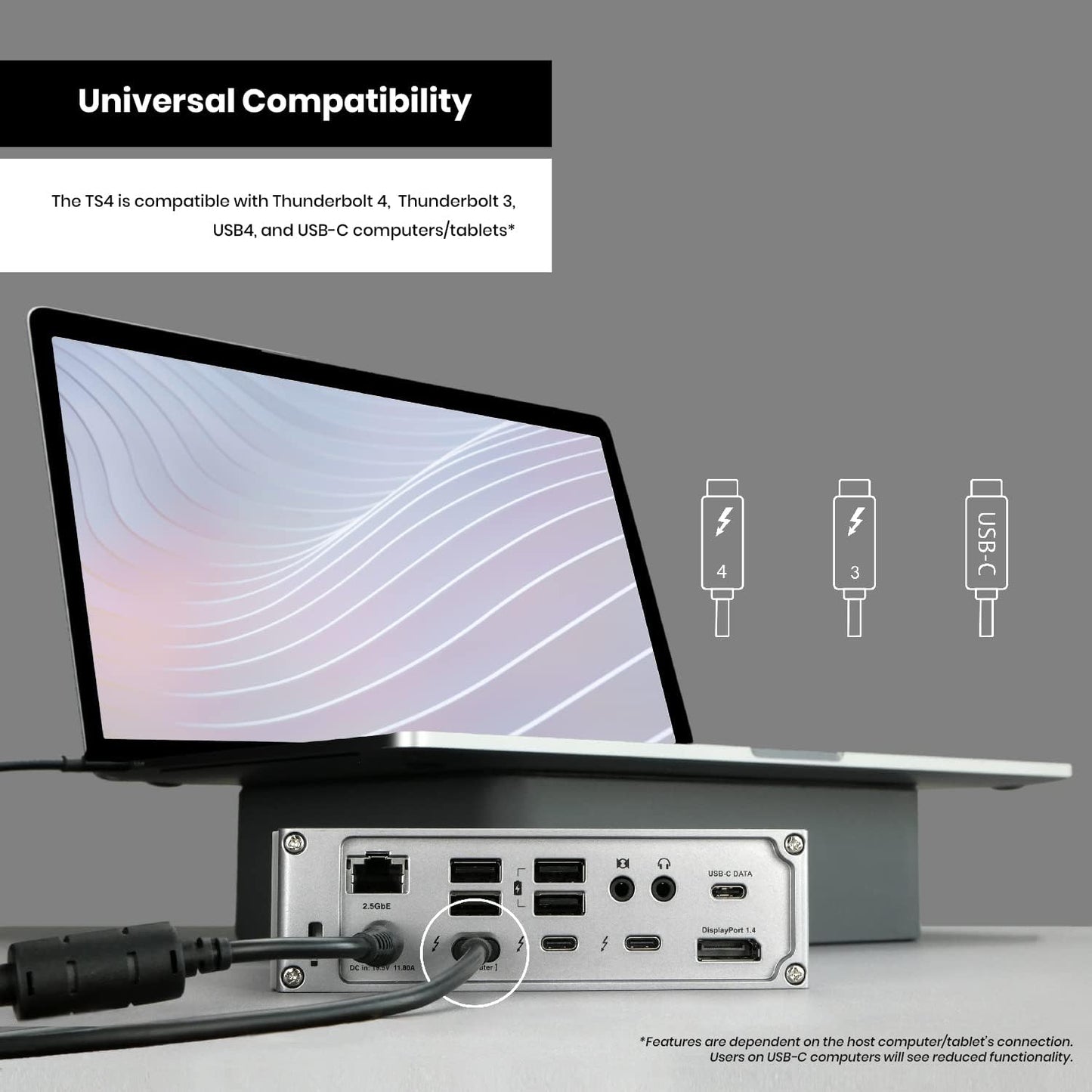

Universally Compatible*
- Having the ability to use the TS4 on any Type-C (with data, power, and video support) computer or tablet is incredibly convenient.
- Compatible with Thunderbolt 5, Thunderbolt 4, Thunderbolt 3, USB4, and USB-C (with data, power, and video support) computers, the TS4 adapts to the host computer it connects to, providing the features available to your computer or tablet. **Devices using less powerful/older interfaces than Thunderbolt 4 or USB4 will see a reduction in performance capped by their max specifications
- Thunderbolt 3, 4 and 5 PC
- Intel Thunderbolt 3 Mac¹
- M4, M Pro, M Max & Ultra Thunderbolt 4 or Thunderbolt 5 Mac¹
- M1 Thunderbolt 3 Mac¹
- Thunderbolt 3, 4, & 5 PC
- USB4 PC
- USB-C (with data, power, and video support) PC
- USB-C (with data, power, and video support) Windows Tablet
- Thunderbolt or USB-C (with data, power, and video support) iPad²
- Thunderbolt or USB-C (with data, power, and video support) Chromebook

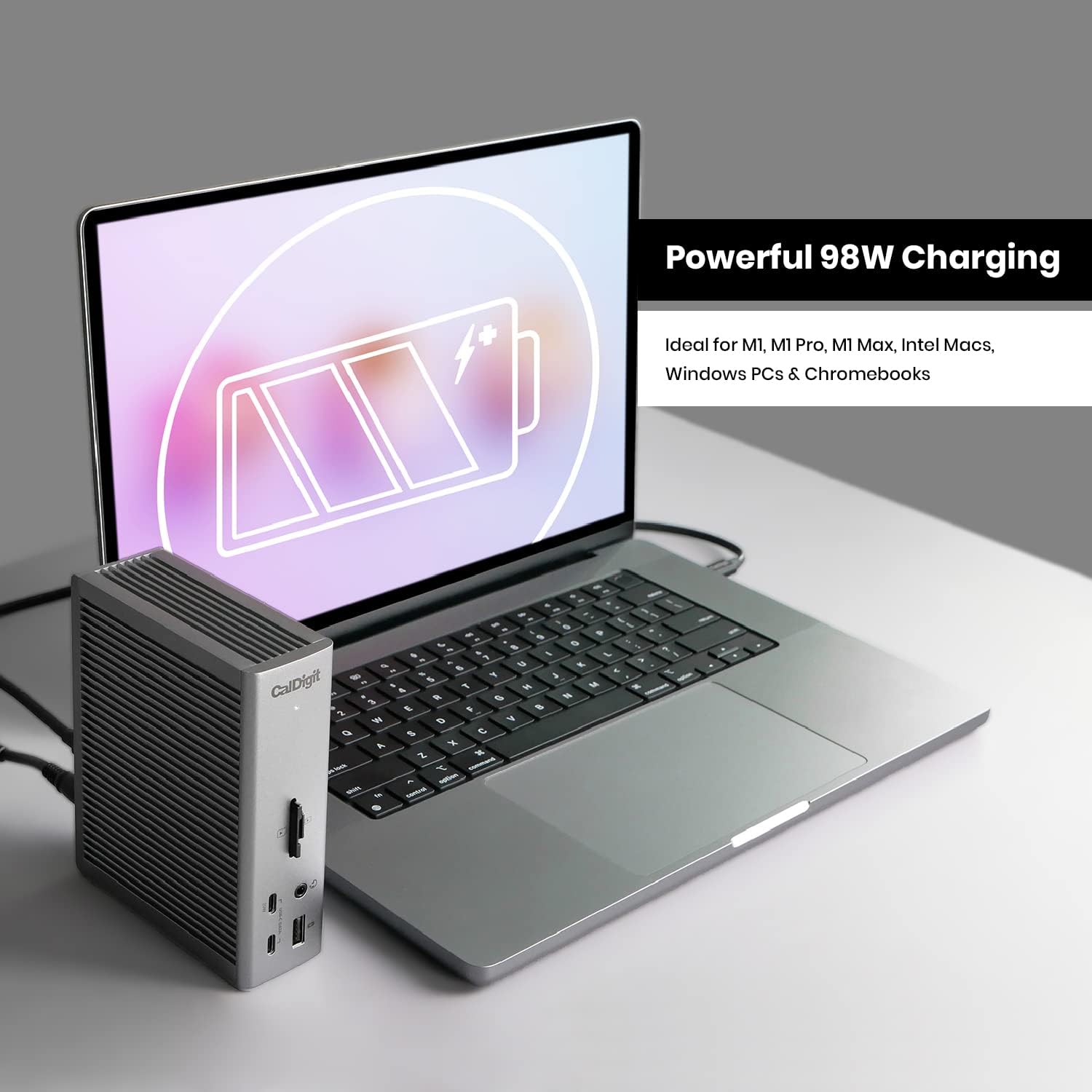

Fastest Laptop Charging
When it comes to laptop charging the TS4 provides up to 98W of power delivery.
That is the highest charging provided by any Thunderbolt 4 dock, and is ideal for larger screen laptops that require more power.
For laptops or tablets that require less than 98W, the TS4 will only supply the wattage required by your device.
20W USB-C Port

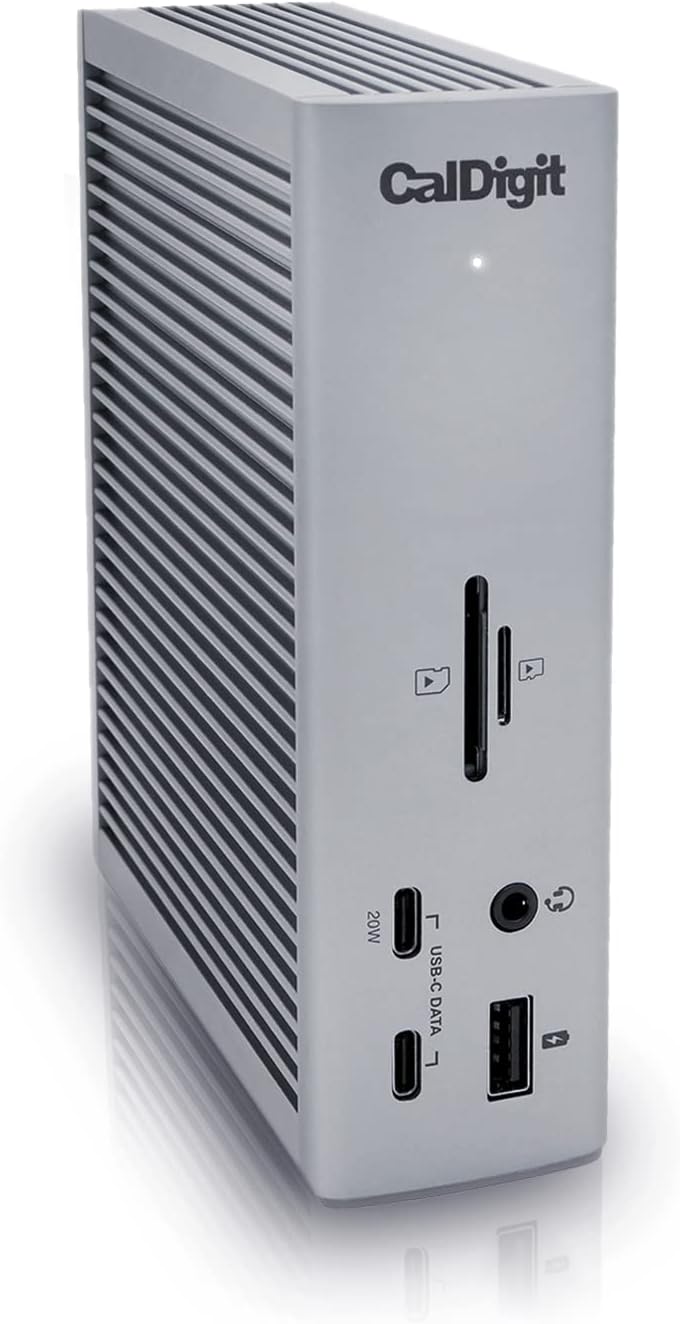

One of the front-facing USB-C ports can supply up to 20W of power for your attached USB-C device.
This is ideal for accessories that require more power, such as Apple’s MagSafe wireless charger.
More is More
The TS4 offers a staggering 18 ports of connectivity, the most featured on any Thunderbolt dock ever. The purpose of a device like this is to never run out of ports, and for the majority of us, that should certainly not be the case with the TS4.

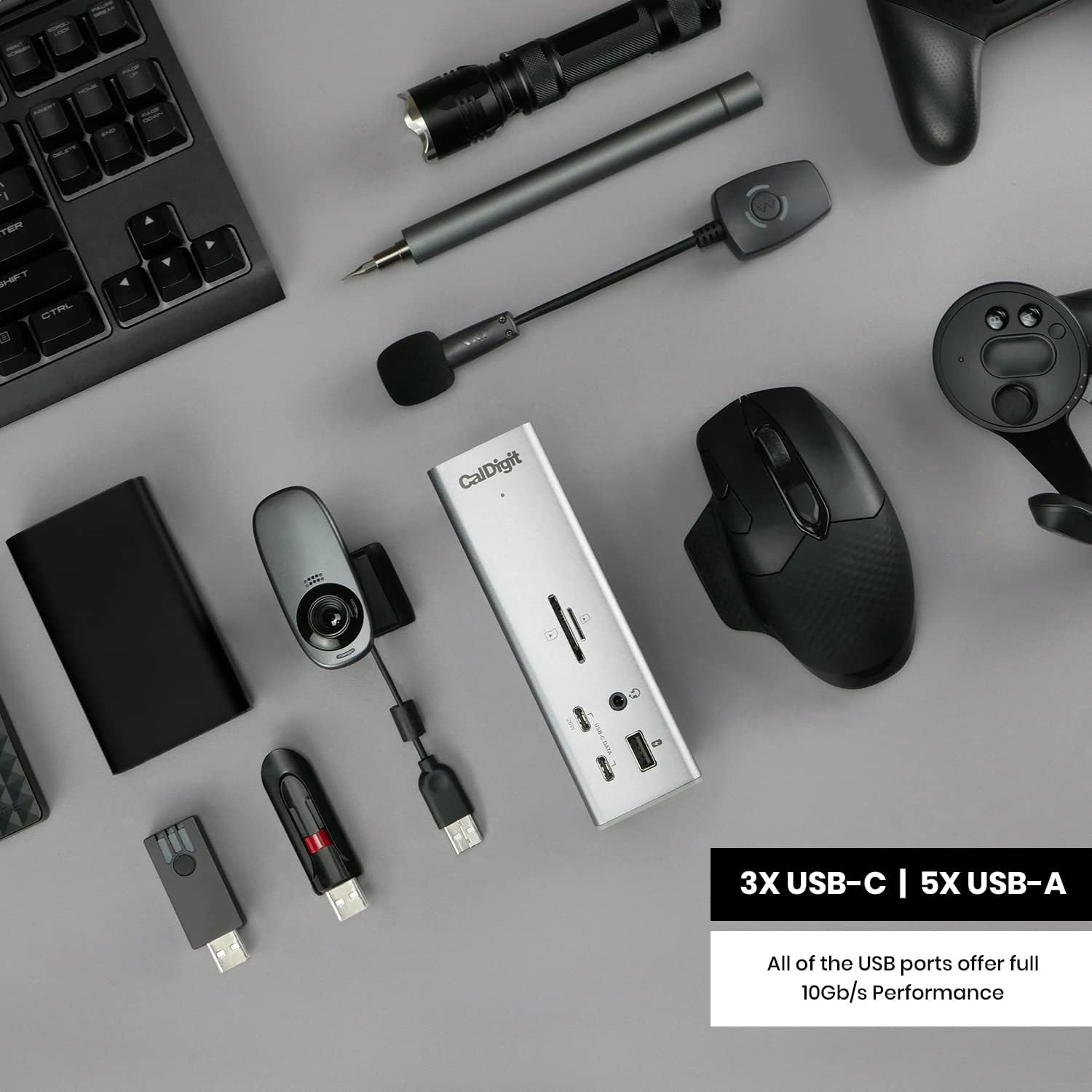

8 USB Ports
With 8 USB ports on the TS4, a mixture of USB-A and USB-C, you have plenty of port connectivity to connect your USB accessories³.
All of the USB ports on the TS4 offer 10Gb/s performance.

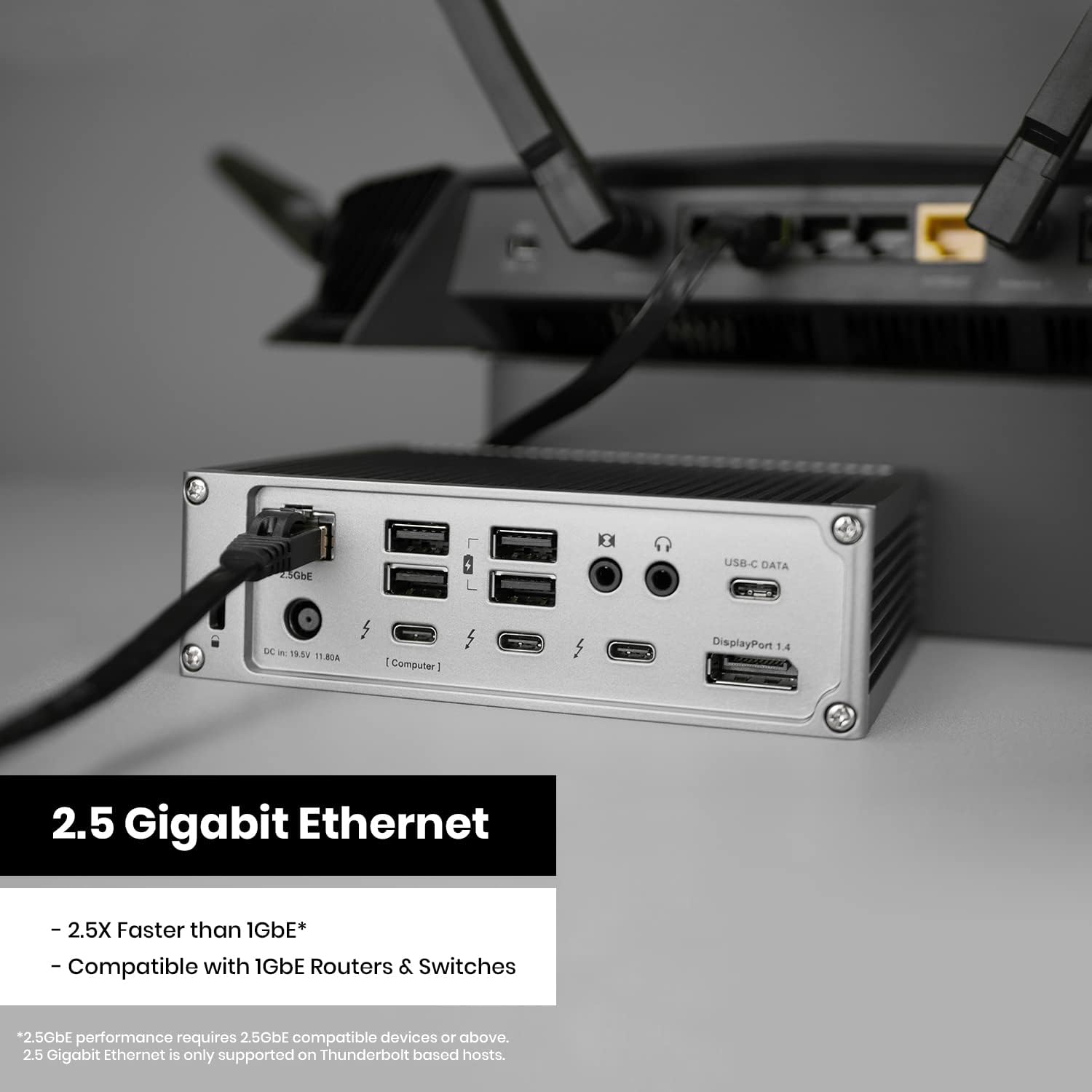

2.5 Gigabit Ethernet
The TS4 is a dock that provides a lot of unique features, and that is certainly the case with the inclusion of 2.5GbE.
2.5GbE is 2.5x faster than traditional Gigabit Ethernet, and is becoming the new standard for routers, switches, and NAS devices.⁴ The TS4’s 2.5GbE functionality represents great value for money.
Of course you can use the 2.5GbE port on the TS4 with traditional 1GbE Ethernet devices.

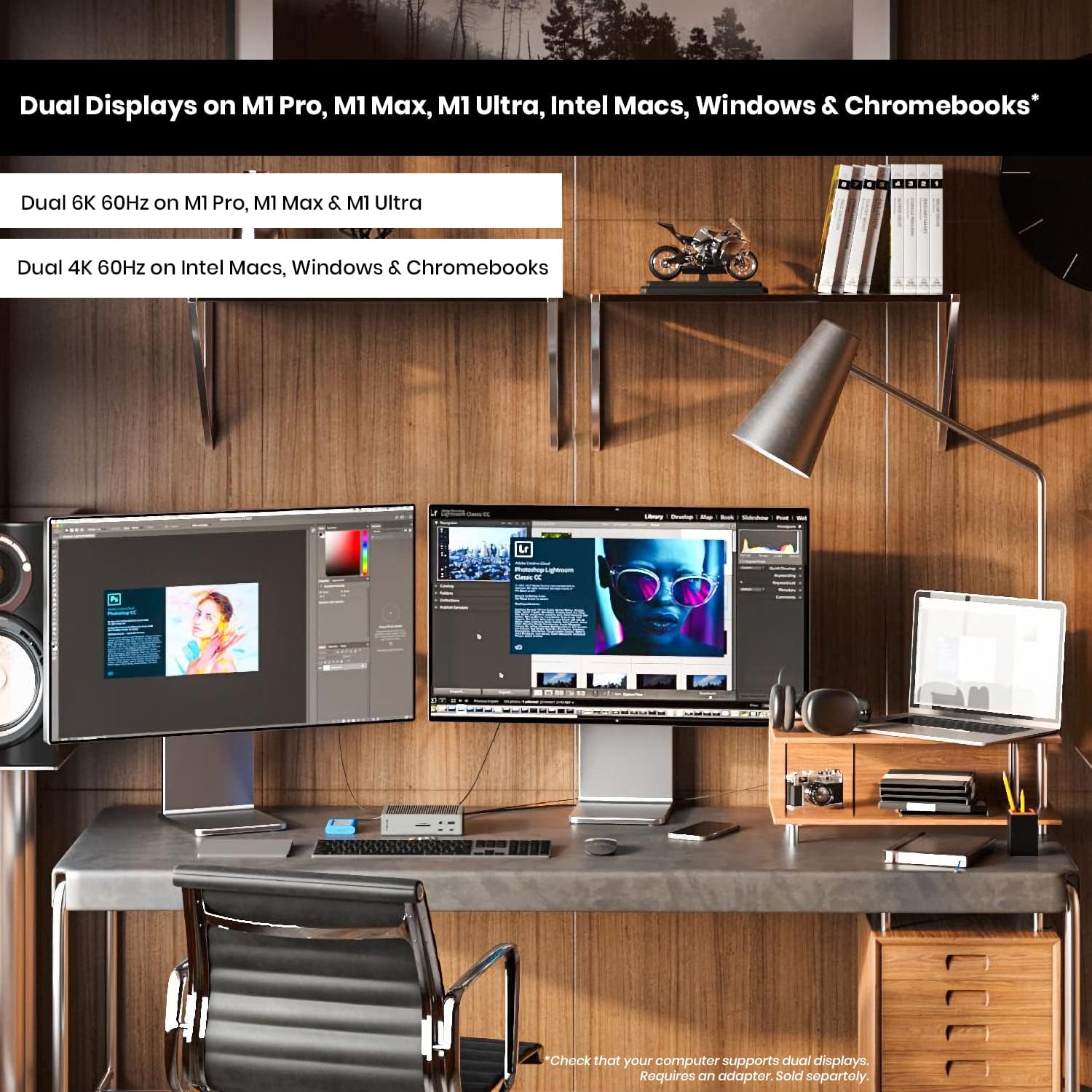

Single 8K or Dual 6K 60Hz Displays⁵
When it comes to connecting a monitor the TS4 offers outstanding visual clarity.
Single Monitor
If you’re looking to add a single monitor to the TS4 you can either connect it to the DisplayPort connector or to one of the spare Thunderbolt 4 ports. If you wish to connect a HDMI monitor you can either connect an Active DisplayPort to HDMI Adapter, or use a USB-C to HDMI Adapter (sold separately).
Dual Monitors
- macOS users on M series Pro, M series Max, M series Ultra, M4, or Intel based Macs can connect up to dual displays.
- M1 - M3 based Macs cannot support dual monitors through their Thunderbolt ports.
- Windows PC Thunderbolt 3, Thunderbolt 4, and Thunderbolt 5 users can connect up to dual displays.
- USB-C 10Gb/s devices with MST (with data, power, and video support) can support dual displays up to 1440p 60Hz
Technical Specifications

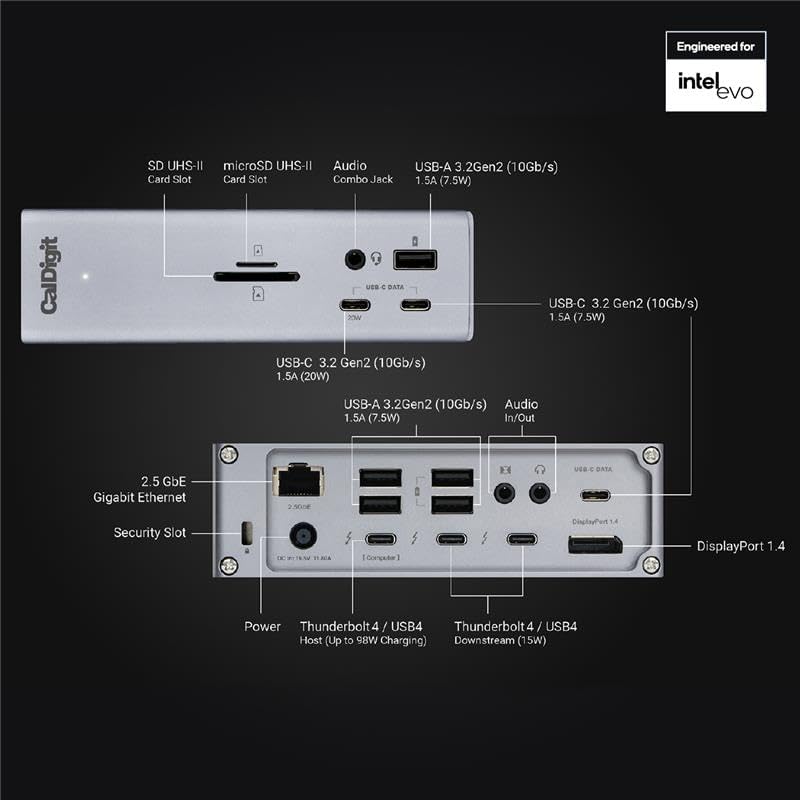

Interface

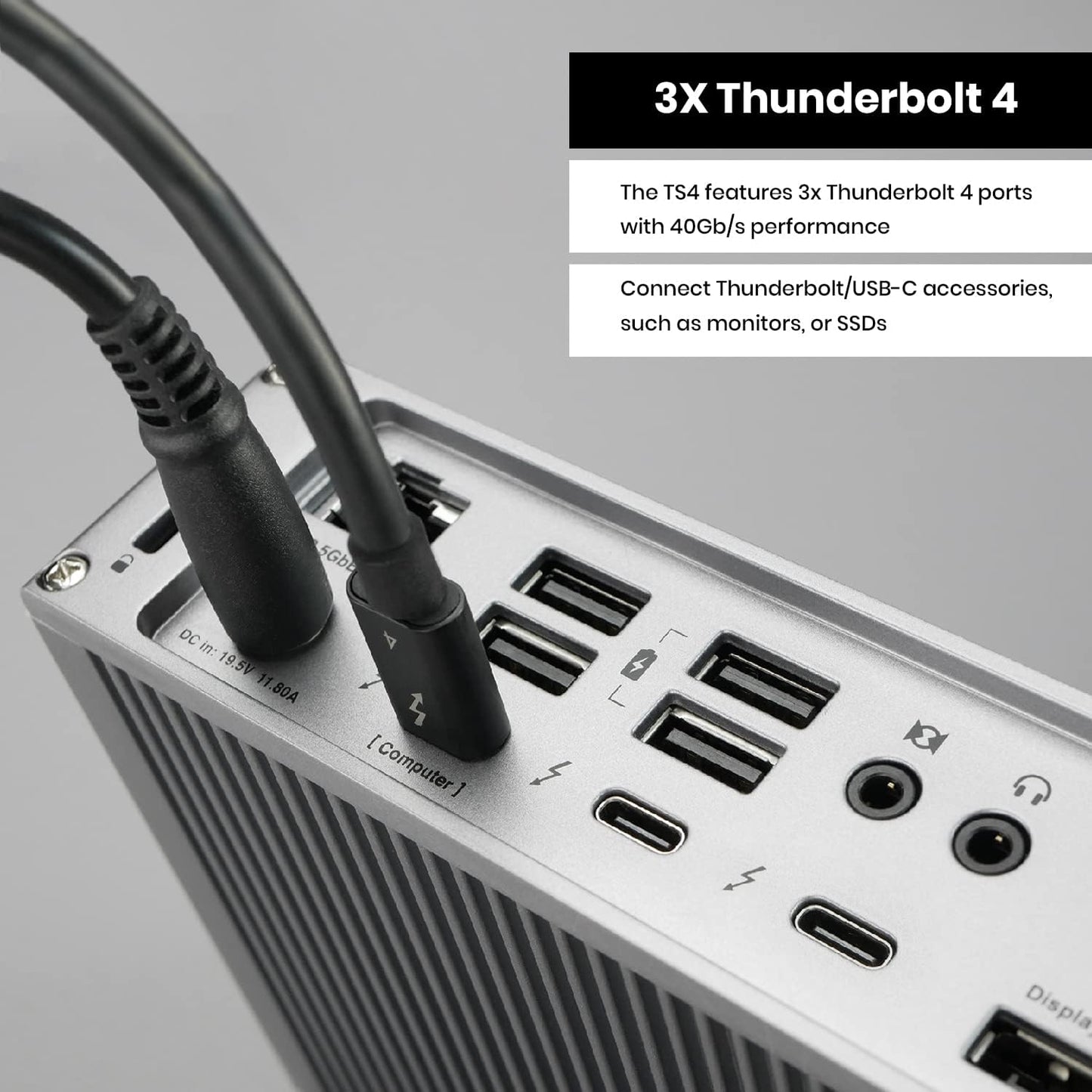

- 3 x Thunderbolt 4 (40Gb/s)
- 3 x USB-C (10Gb/s)
- 5 x USB-A (10Gb/s)
- 1 x DisplayPort 1.4
- 1 x SD 4.0 (UHS-II)
- 1 x microSD 4.0 (UHS-II)
- 1 x 2.5 Gigabit Ethernet
- 1 x Front Combo Audio In/Out (3.5mm)
- 1 x Rear Audio Out (3.5mm)
- 1 x Rear Audio In (3.5mm)
- 1 x DC In (19.5V 11.80A)
Minimum System Requirements
- macOS 11.4 (Big Sur) or above or Windows 10 (20H2) or above
- Thunderbolt 5, Thunderbolt 4, or Thunderbolt 3 Computer
- USB-C (USB4) or USB-C (with data, power, and video support) Computer
- Chromebook (Thunderbolt or USB-C)
- iPad Pro/iPad Air/iPad mini (Thunderbolt or USB-C) or Windows Tablet (Thunderbolt or USB-C)
**USB 4, Thunderbolt 4, or Thunderbolt 5 is required for maximum performance. When used with older or less powerful interfaces such as Thunderbolt 3, Thunderbolt 2, Thunderbolt 1, USB-C (with data, power, and video support), performance will be capped at the capability of the the host interface specifications
Power Delivery
- Thunderbolt 4/USB4 Host Port: Up to 98W
- Each Downstream Thunderbolt 4/USB4 Port: 15W
- Front 20W USB-C Port: 20W & Remaining USB-C Ports: 7.5W
- USB-A Ports: 7.5W
Size & Weight
- Height: 5.55” (141.0mm) | Width: 1.65” (42.0mm) | Length: 4.46” (113.0mm) | Weight: 1.41 lbs (0.64kg)
In the Box
- 1x CalDigit TS4
- 1x Thunderbolt 4 Cable (0.8m)
- 2x Rubber Feet Strips
- 1x Power Cord & Power Supply (230W)
¹ Requires macOS 11.4 or above
² Functionality is dependent on host computer or tablet’s capabilities.
³ USB-C & USB-A ports are for data only. Users who wish to connect monitors must connect them to the spare Thunderbolt 4/USB4 ports.
⁴ 2.5GbE performance requires a Thunderbolt host & 2.5GbE compatible devices or above.
⁵ Some refresh rates require DP.14 HBR3 and DSC 1.2 support from host, GPU and monitor. Some Thunderbolt 3 hosts that only support DP 1.2 will be capped at a lower resolution & refresh rate. The bit/color depth may vary in order to support higher refresh rates. The support of higher refresh rates may vary due to OS updates. Some Windows PC manufacturers have decided to restrict functionality on their Thunderbolt 3 and USB-C ports such as charging and monitor compatibility. Check to see if your PC supports external monitors.
